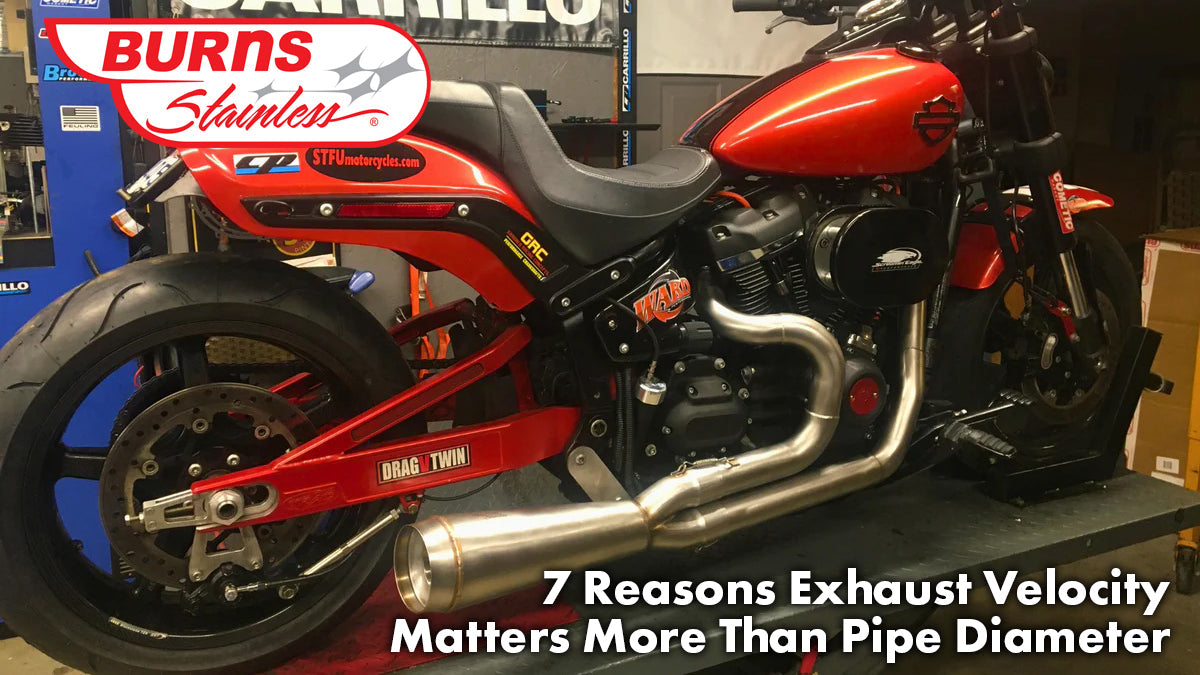

Harley-Davidson Big Twin Performance
Most exhaust conversations start in the wrong place.
People ask, “How big should my pipes be?” as if pipe diameter alone determines performance. It does not. Bigger pipe does not automatically mean better exhaust flow, more horsepower, or a stronger torque curve. In fact, oversizing an exhaust system on a large-displacement Harley-Davidson big twin can hurt performance by slowing exhaust gas velocity, weakening scavenging, and increasing the chance of reversion.
The better question is this: How well does the exhaust system control gas movement after it leaves the cylinder?
That is where real performance is made or lost—especially on high-compression, large-inch big twin engines where airflow demand and timing sensitivity are high.
At Burns Stainless, we do not look at exhaust sizing as a simple diameter decision. We look at gas exchange, exhaust pulse behavior, flow inertia, pressure wave timing, and how all of it works together to evacuate the cylinder efficiently on real Harley-Davidson performance engines. Pipe diameter is only one tool. Exhaust velocity is what determines whether the system actually works.
1. The Engine Responds to Exhaust Flow Behavior, Not Pipe Size
The engine does not care what size tubing is printed on the invoice.
What it “sees” is pressure at the exhaust valve, how quickly gases leave the cylinder, and whether spent gases are cleared before the next cycle begins. That is a function of exhaust flow behavior, not pipe diameter by itself.
On a big-inch Harley engine, especially in the 124–135+ CID range, this becomes even more critical. These engines move a large mass of air per cycle, and they are sensitive to how effectively that mass is evacuated.
A larger exhaust tube may look less restrictive on paper, but if that added cross-sectional area slows the gas too much, the engine loses the pressure relationships and flow control it needs to make power. That means weaker cylinder evacuation, poorer scavenging, and less effective combustion on the next cycle.
Pipe diameter is a dimension. Velocity is a performance function.
2. Exhaust Flow Is Pulsed, and Those Pulses Must Stay Intact
Exhaust flow is not a steady stream. It happens in pulses.
Every exhaust valve event sends a discrete mass of gas into the header. A properly designed performance exhaust system allows each pulse to travel with definition, timing, and consistency. That pulse structure matters because the entire system depends on those repeated pressure events behaving predictably.
On a 45-degree V-twin like a Harley-Davidson, the firing order creates uneven pulse spacing. That makes preserving pulse integrity even more important. If the pulses are not controlled, the system becomes inconsistent very quickly.
When exhaust velocity is high enough, the pulse remains organized as it moves through the primary tube, collector, and downstream sections. When velocity drops too far, the pulse begins to lose shape, spread out, and interfere with the next event.
That loss of pulse definition is where many oversized exhaust systems on big twins start to fail.
3. Exhaust Velocity Creates Inertia That Keeps Gas Moving Out
Each exhaust pulse is a moving mass, and moving mass has momentum.
That momentum is critical because it helps the exhaust continue traveling out of the cylinder even as pressure conditions change. This is fluid column inertia, and it is one of the most important but least understood aspects of exhaust tuning.
On large-displacement Harley engines with aggressive cam timing and overlap, maintaining that outward motion is essential. There is simply more exhaust mass to manage, and less margin for losing control.
When velocity is strong, the exhaust column resists slowing down and resists being pushed backward. When velocity falls, that inertia falls with it. Now the pulse becomes easier to disrupt, easier to stall, and easier to reverse direction.
That is a problem at every rpm point, but especially in the midrange where big twins spend most of their time.
4. Reversion Often Starts When Pipe Area Is Too Large
During valve overlap, the intake and exhaust valves are both open. This is a critical moment in the cycle.
If the exhaust gas is moving with enough velocity and inertia, it continues out of the cylinder and helps clear the chamber. If it is not, the flow can slow down or reverse.
That reverse movement is reversion.
Reversion contaminates the incoming charge, hurts cylinder filling, and undermines power. On a high-performance Harley big twin, that shows up as softer throttle response, weaker torque, and less clean power delivery.
One common cause is excess exhaust pipe area. When the system has too much volume for the amount of gas being moved—especially at lower and midrange rpm—velocity drops. When velocity drops, flow stability drops with it.
This is why “bigger is better” is such bad exhaust advice for big twins. An oversized exhaust system may reduce restriction in theory while creating worse flow behavior in practice.
5. Pressure Wave Scavenging Only Works When Bulk Flow Still Has Motion
Yes, pressure waves matter.
A returning negative pressure wave can reduce pressure at the exhaust port during overlap and help initiate scavenging. That part is real. But too many exhaust discussions stop there and ignore the rest of the picture.
A pressure wave can create the opportunity for scavenging, but exhaust velocity determines whether the gas mass keeps moving outward once that opportunity exists. If the bulk flow has lost speed and inertia, the wave effect is weakened.
This is especially important on big twin engines, where large cylinder volumes mean more mass must be moved for scavenging to be effective.
In other words:
Pressure waves help start the process. Velocity helps finish it.
That is why effective exhaust tuning is never just about wave timing or pipe size alone. It is about how the entire system maintains exhaust gas motion through the cycle.
6. Oversized Pipe Diameter Weakens Pressure Gradients and Disperses Pulses
When pipe diameter increases too much for the application, the exhaust pulse begins to stretch.
Instead of a compact, high-energy event with a clear pressure rise and a defined trailing edge, the pulse becomes diffuse. Its energy is spread over a greater volume and a longer distance. The pressure gradients become weaker. The edges lose definition. The system becomes less effective at maintaining strong, directed flow.
On large-displacement Harley engines, this effect shows up quickly because the system is already dealing with large pulse mass and uneven firing intervals.
Oversized tubing does not just slow the gas. It changes the character of the pulse itself.
7. Good Exhaust Systems Are Pulse-Dominated, Not Volume-Dominated
A properly sized exhaust system is pulse-dominated.
That means performance comes from distinct exhaust events, strong gas motion, effective collector behavior, and predictable pressure wave interaction. The system is doing active work to support cylinder evacuation.
An oversized exhaust becomes volume-dominated. Gas slows down. Pressure gradients weaken. Direction becomes less stable. Instead of helping pull gases out, the system starts acting like empty space that the gas merely occupies.
And empty space does not make power—especially on a high-performance big twin where every cycle matters.
That is the difference between an exhaust system that is engineered and one that is simply large.
Why Exhaust Velocity Matters for Horsepower, Torque, and Throttle Response
If exhaust velocity is too low, the engine pays for it:
· Cylinder clearing suffers
· Reversion becomes more likely
· Pulse energy weakens
· Scavenging loses effectiveness
· Throttle response softens
· Torque production falls off, especially in the midrange
· Overall exhaust tuning becomes less precise
On a Harley big twin, that usually means the bike feels slower, even if peak numbers look acceptable.
The Right Way to Think About Exhaust Sizing
Pipe diameter matters, but only as part of a larger exhaust design strategy.
The real goal is not to install the biggest tube possible. The goal is to maintain exhaust gas velocity, preserve pulse integrity, support scavenging, and keep gases moving out of the cylinder when it matters most.
That is how a performance exhaust system makes power—on the dyno and on the road.
At Burns Stainless, that is where the design process starts. Not with a catalog number. Not with a rule of thumb. With gas exchange, flow behavior, and real exhaust system function on Harley-Davidson performance engines.
Because when the goal is making power, velocity is not a side effect. > It is the point.
FAQ (Harley Performance Focused)
Does a bigger exhaust pipe make more power on a Harley?
Not automatically. If the pipe is too large for the engine combination, exhaust gas velocity can drop and hurt scavenging, torque, and throttle response—especially in big twin applications.
Why is exhaust velocity important on big twin engines?
Big twin engines move a large volume of air per cycle. Maintaining velocity helps preserve pulse strength, flow inertia, and stable outward gas movement, which improves cylinder evacuation and reduces reversion.
What happens when a Harley exhaust system is oversized?
The pulses lose definition, pressure gradients weaken, and the system shifts from helping move gas to simply providing extra volume. This often reduces usable power and throttle response.
Is pipe diameter still important?
Yes, but only when it is matched to engine size, airflow, rpm range, and intended use. Diameter is a tool. Velocity is the result you are trying to protect.
