NhB Muffler for Harley Davidson Pan America

Burns StainlessSKU: SY-HDPA-DualCan

Price:
Sale price$1,018.60

Description

Features

Details

Payment & Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

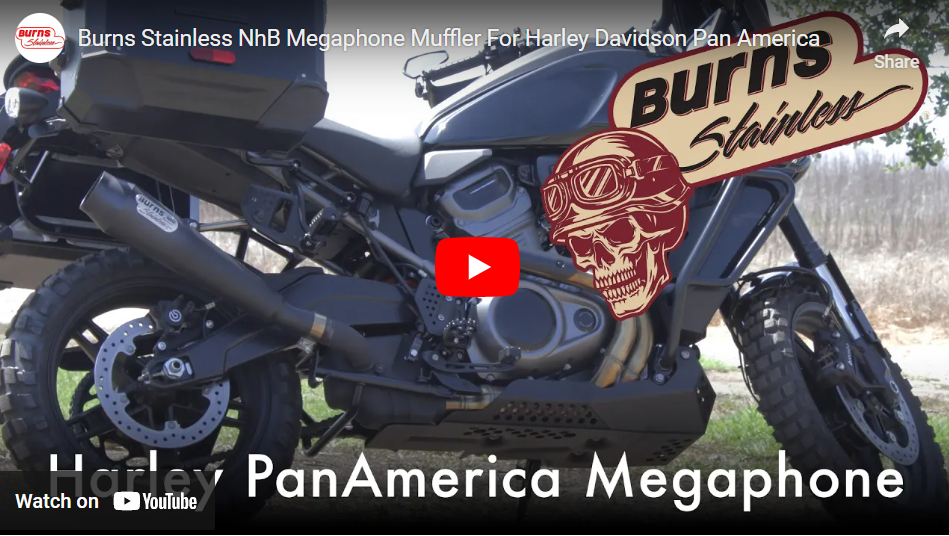

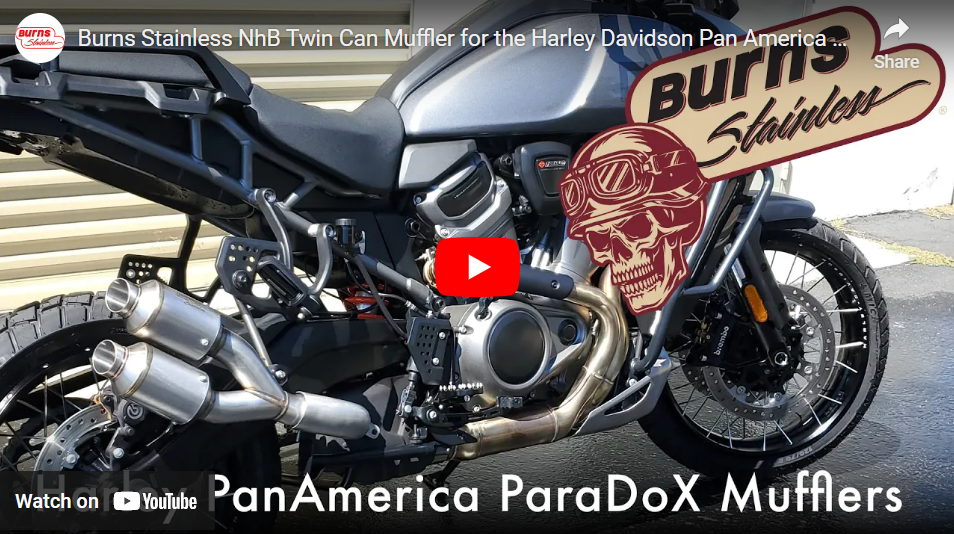

Video Sound Clips

Additional Product Information

Burns Stainless has developed an exhaust system unique enough to complement the classic styling of the Harley-Davidson. Burns background in performance is highlighted on this exhaust with horsepower and torque gains. The systems are all handcrafted in the USA with all the TIG welds being perfected by hand. It has been designed and tuned for max torque and increased horsepower.

  • Full system exhaust including mufflers.
  • Mandrel bent stainless steel tubing.
  • 100% Argon back-purged TIG welding for high strength and precision fitment.
  • Primary length is adjustable to optimize torque and power and includes an adaptable header mount.
  • Systems are constructed from ASTM269 304 stainless steel tubing for best combination of weight savings and durability
  • Made in the USA

FLHR - Road King, FLHRC - Road King Classic, FLHRS - Road King Custom, FLHS- Electra Glide Sport, FLHT - Electra Glide Standard, FLHTC - Electra Glide ClassicFLHTCU - Ultra Classic Electra Glide, FLHTCUL -Ultra Classic Electra Glide, LowFLHX - Street Glide, FLHXSE - CVO Street Glide, FLHTCUSE - CVO Ultra Classic Electra Glide, FLHTK - Electra Glide Ultra Limited, FLHTKL - Electra Glide Ultra Limited, Low FLHX - Street Glide, FLHXS - Street Glide Special, FLTR Road Glide, FLTRSE - CVO Screamin' Eagle Road Glide FLTRX - Road Glide Custom FLTRXS - Road Glide Special

Standard primary length is 33 inches - Call for custom length
Product requires support bracket for reverse cone megaphone muffler.

Options are:

  • Fabricate your own
  • Allow Burns Stainless to provide the bracket
    For the latter, simply add the Burns Stainless Megaphone Muffler Support Bracket to your shopping cart

    Product ships standard without O2 sensor bungs. Let Burns Stainless install them for you!

    Options are:
    Two (2) 12mm factory installed O2 bungs
    Two (2) 18mm factory installed O2 bungs
    Two (2) 12mm PLUS two (2) 18mm factory installed O2 bungs
    Add desired above bung option to shopping cart

Burns NhB exhaust features engineered port fittings to ensure proper fitment and port flow.

Due to the high velocity at the exhaust port, it is imperative that the flow be unobstructed. We have seen as much as a 5% loss of power for poorly matched headers and ports. To ensure proper flow, Burns has designed port fittings that properly align the exhaust header to the port. Also, the exacting dimensions of the fitting allows for better, more repeatable fabrication ensuring a proper fit on the motorcycle. On the Milwaukee 8 system, we have engineered a CNC machined fitting to improve the fitment of the pipes.

Stepped headers are known in the highest level of motorsports to be the best design for scavenging the cylinder during the exhaust stroke.

By keeping the header size close to the exhaust port size, exhaust gas velocity is kept high at the port reducing the possibility of reversion. This is especially important with the unequal firing impulses inherent to the V-Twin single pin crank arrangement. Enlarging the tube with stepped pipes ensures that wall drag losses are minimized keeping the exhaust potential available for maximum power but also allowing for broad power band.

The Burns NhB exhaust has been designed with X-Design, Burns Stainless’ exclusive, proprietary exhaust program developed and fine tuned for over 15 years in conjuction with engineers and racers in the highest echelons of motorsports.

The objective of X-Design is to provide the broadest powerband without sacrificing top-end power.

The Burns NhB exhaust is designed around the famous Burns merge collector that has been used in Harley pro-stock drag racing.

The 2-into-one collector helps minimize exhaust reversion while helping to scavenge the exhaust cylinder during each exhaust cycle. The efficient scavenging of the cylinder during the exhaust and overlap period allows for the maximum amount of air and fuel in the cylinder assuring maximum power.

The Burns megaphone muffler provides the Pro-Stock appearance of the exhaust while maximizing performance and reducing the sound of the exhaust. The deep, mellow sound is a by product of the specially designed core perforations.

The small holes provide effective damping of sound waves while allowing for a smooth bore minimizing drag losses and improving power output.
